Outdoor Kitchen Cabinets


Outdoor Kitchen Cabinets:

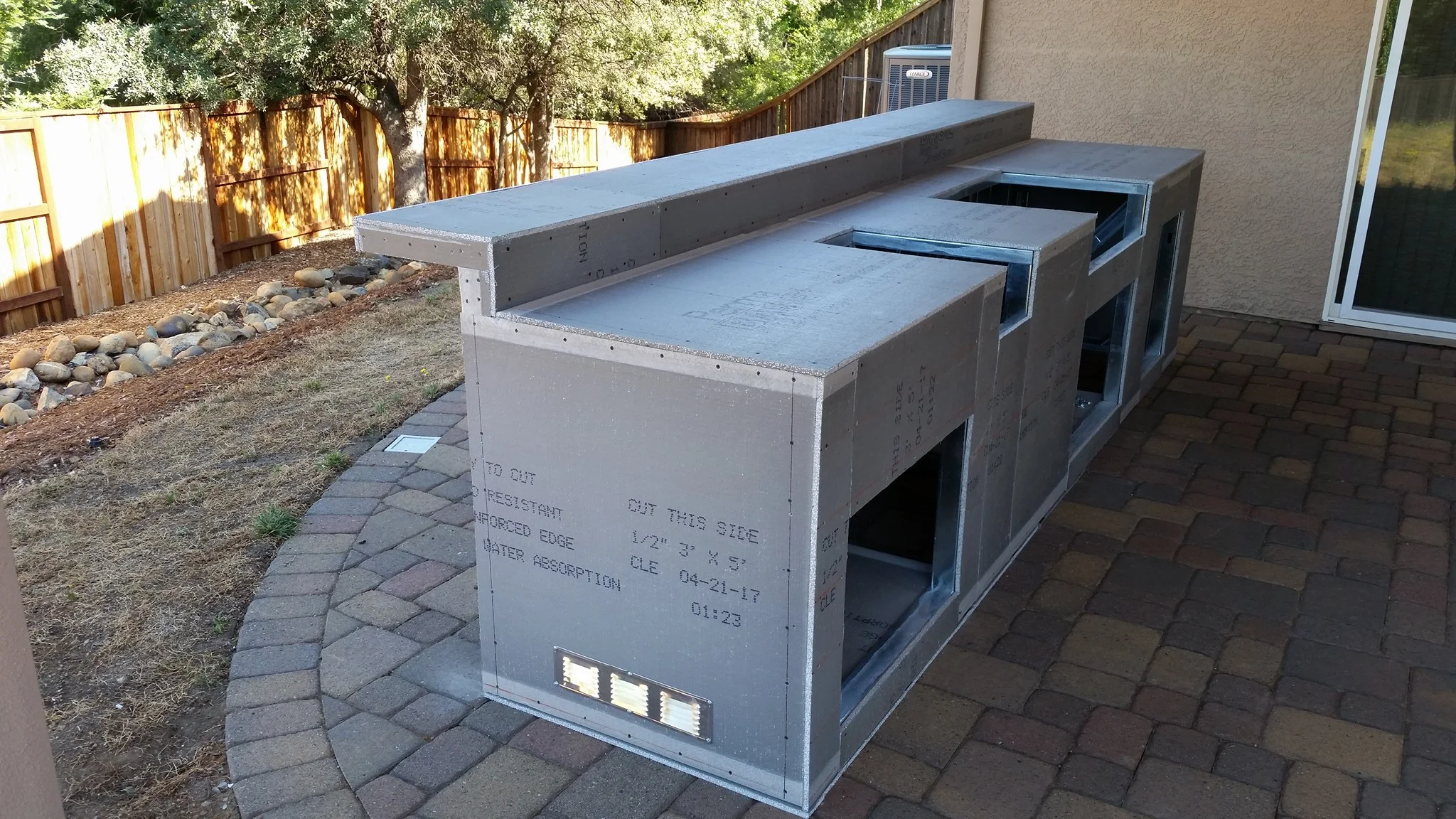

We use 18 gauge 43 mil structural galvanized steel track and studs. We space our studs 16” on center just like a house and on every corner we add an additional upright and put a 45 degree brace for added support. Our track and studs for the cabinets are 2 1/2” wide for more strength. We use a 1/2” concrete board called PermaBase which is OUTDOOR RATED. All of the materials we use are outdoor rated, can handle more weight, won’t rust, won’t mildew and are non-combustible.

Outdoor Kitchen Cabinets with 42” Bar


Outdoor Kitchen Cabinets w/ 42” Cantilever Bar:

We use 20 gauge 33 mil structural galvanized steel track and studs. We space our studs 12” on center and on every cantilever we add an additional 90 degree rigid tie bracket for added support for the bar top. Our track and studs for the bar top are 1 1/2” for a low profile look. We put another set of uprights throughout the entire back wall of the outdoor kitchen so you have double studs and your bar top has more support and the proper frame work. Our bar cantilever is a 12” overhang with a 15” bar top. We use a 1/2” concrete board called PermaBase which is OUTDOOR RATED. All of the materials we use are outdoor rated, can handle more weight, won’t rust, won’t mildew and are non-combustible.


Custom Seating Tables

Outdoor Kitchen Cabinets with 36” Bar


Outdoor Kitchen Cabinets w/ 36” Cantilever Bar:

We use 18 gauge 43 mil structural galvanized steel track and studs. We space our studs 12” on center and on every cantilever we add an additional 90 degree rigid tie bracket for added support for the bar top. Our track and studs for the bar top are 1 1/2” for a low profile look. Our bar cantilever is a 12” overhang with a 42” counter top. We use a 1/2” concrete board called PermaBase which is OUTDOOR RATED. All of the materials we use are outdoor rated, can handle more weight, won’t rust, won’t mildew and are non-combustible.


Custom Seating Tables:

We use 18 gauge 43 mil up to 20 gauge 33 mil structural galvanized steel track and studs depending on the custom application. We space our studs 12” on center and on every cantilever we add an additional 90 degree rigid tie bracket for added support for the bar top. Our track and studs for the bar top are 1 1/2” for a low profile look. Our bar cantilever is a 12” overhang with a 42” counter top. We use a 1/2” concrete board called PermaBase which is OUTDOOR RATED. All of the materials we use are outdoor rated, can handle more weight, won’t rust, won’t mildew and are non-combustible.
